Pumps

TH Slurry Pumps are the most comprehensive range of centrifugal pumps for mining, minerals processing, coal preparation, dredging, metallurgy, power plant, chemical, and general industry applications. The wetted parts materials are designed by High abrasion and corrosion resistance alloy, rubber, or polyurethane, especially for handling highly abrasive, high-density slurries.

Size: 1 to 22
Capacity: 3.6m3/h - 5400 m3/h
Head: 6m - 125m
Handing solids: 0mm - 130mm
Concentration: 0% - 70%
Materials: Hyperchrome alloy, Rubber, Polyurethane, Ceramic, Stainless steel, etc.

• Horizontal, Cantilevered, Centrifugal, Single-stage slurry pump design.
• Bearing assembly: A large diameter shaft with a short overhang minimizes deflection and contributes to long bearing life. Only four through bolts are required to hold the cartridge-type housing in the frame.
• Casing: Casing halves of cast or ductile iron with external reinforcing ribs provide high operating pressure capabilities and an extra measure of safety.

• Impeller: Front and rear shrouds have pump-out vanes that reduce recirculation and seal contamination. Hard metal and molded elastomer impellers are completely interchangeable.
• Liners: Easily replaceable liners are bolted, and not glued to the casing for positive attachment and east of maintenance. Hard metal liners are completely interchangeable with pressure-molded elastomer.
• Shaft seal: Packing seal, Centrifugal seal, Mechanical seal.

• Throat bush wear is reduced and maintenance is simplified by the use of tapered mating faces to allow positive accurate alignment during assembly and simple removal.
• Driving type: Flexible coupling belt with pulleys, gearbox, VFD, SCR control, etc.
• The discharge branch can be oriented to any eight positions at an interval of 45 degrees.
• Easy to install and maintain in on-site applications.

A Packing Seal is a general shaft seal. It applies to various pumping conditions, PTFE and Graphite materials of Packing can be used in high corrosive slurries or high-temperature conditions. Using ceramic shaft sleeve, for high abrasion conditions, the ceramic shaft sleeve is available.

The Expeller Seal is an impeller force of reversed centrifugal force that prevents slurry leakage. An expeller seal can be used on the single-stage pump when the positive pressure of the pump inlet is no more than 10% of the pump outlet pressure or on the first-stage pump in the pump series.

Mechanical Seal is an advanced sealing technique without sealing leakage. The advantages are integrating construction, convenient installation & replacement. The design of the mechanical seal and seal box is suitable for liquid flow conditions, so it has high abrasion and vibration resistance. Mechanical seals can be used in various severe conditions.

Mining & Mineral Processing
The slow running speeds together with the comprehensive choice of abrasion-resistant alloys and elastomers, provide unrivaled performance and service life for all abrasive mining and minerals processing applications.

Chemical Process
The interchangeability of alloy and elastomer components in the same pump casing, together with a wide range of mechanical seals, makes the TH Heavy Duty Slurry Pump the most flexible choice for the chemical plant environment.

Sand & Gravel
Designed for an easy and simple strip down and re-assembly, minimizes downtime, making it the ideal choice where installed stand-by pumps are not available.

Sugar Processing
The premium reliability and service life of the TH Heavy Duty Slurry Pump is specified by many sugar plant engineers worldwide where uninterrupted pump operation during the sugar campaign is a critical requirement.

Oil & Gas Exploration
Over several years company has developed the proven design of the TH Heavy Duty Slurry Pump ranges to suit the specific demands of offshore applications. The company offers the most reliable top-side solution to erosive wear.

Industrial Applications
Wherever abrasive solids are causing premature failure of pumps, the TH Heavy Duty Slurry Pump range has the right combination of performance, wear life, and reliability to bring the customer the lowest cost of ownership.

Mining, Mineral processing, Coal prep, Cyclone feeds, Tunnel, Chemical slurries, Tailings, Mill grinding, Ash handing, Paper and Pulp, Waste sludge, Coarse sand, Lime mud, Phosphoric acid, Dredging, Construction, Alumina Industry, Power Plant, Potash Fertilizer Plant, etc.

THH High Head Slurry Pumps are end-suction, split-case, centrifugal slurry pumps, extensive exterior ribbing allows for a higher head and higher-pressure pumping system, and bulked-up wetted end parts can handle the toughest applications. Commonly used for long-distance transport lines. The THH pumps can often satisfy working conditions with a single pump whereas others require multiple pumps in series.

Size: 1 to 6
Capacity: 16.2m3/h - 1008m3/h
Head: 12m - 118m
Handing solids: 0mm - 70mm
Casing pressure: Max. 750 PSIG
Materials: Hyperchrome alloy, Rubber, Polyurethane, Ceramic, Stainless steel, etc.

• High head, high-pressure centrifugal end suction slurry pump design.
• Ductile iron fully lined casing provides durability, strength, and long service life.
• Hyperwear-resistant materials for long work life.
• The multi-stage high-pressure operation allowed.

• Heavy-duty construction with a through-bolt design provides ease of maintenance and results in less downtime.
• Large diameter, slow turning, and high-efficiency impellers result in maximum wear life and lower operating costs.
• Large, open internal passages maximize wear life and lower operating costs.

• Full flush gland, low flow, and dry running centrifugal seals reduce flush water usage minimizing pump operating costs.

A Packing Seal is a general shaft seal. It applies to various pumping conditions, PTFE and Graphite materials of Packing can be used in high corrosive slurries or high-temperature conditions. Using ceramic shaft sleeves for high abrasion conditions. The ceramic shaft sleeve is available.

The Expeller Seal is an impeller force of reversed centrifugal force that prevents slurry leakage. An expeller seal can be used on the single-stage pump when the positive pressure of the pump inlet is no more than 10% of the pump outlet pressure or on the first-stage pump in the pump series.

Mechanical Seal is an advanced sealing technique without sealing leakage. The advantages are integrating construction, convenient installation & replacement. The design of the mechanical seal and seal box is suitable for liquid flow conditions, so it has high abrasion and vibration resistance. Mechanical seals can be used in various severe conditions.

Mining, Mineral processing, Coal prep, Cyclone feeds, Tunnel, Chemical slurries, Tailings, Mill grinding, Ash handing, Paper and Pulp, Waste sludge, Coarse sand, Lime mud, Phosphoric acid, Dredging, Construction, Alumina Industry, Power Plant, Potash Fertilizer Plant, etc.

TJH Tunnel Pump is a close-coupled horizontal slurry pump, which can be used as a priming pump or a booster pump, is compact and works in a vertical as well as horizontal position. The heavy-duty design of the TJH tunnel slurry pump is resistant to abrasive metallurgies and the slow-running SP electric motor offers wear and tear resistance.

TJH Tunnel Slurry Pump can handle slurries with up to 60% solids by weight and particles with up to 60mm diameter. It is widely used for Tunnel works, like Micro-tunnelling, Tunnel Boring Machines, Shield Machines, Pipe-Jacking, slurry transportation systems, bentonite slurry, sand gravel, drill fluids, etc.

Size: 50mm - 400mm
Capacity: 10m3/h - 2000m3/h
Head: 8m - 80m
Max. particles: 60mm
Temperature Range: ≤80°C
Materials: High chrome alloy, Cast iron, SS304, SS316L, etc.

The horizontal slurry pump range is one of the world’s most comprehensive ranges of centrifugal slurry pumps for use in mining, chemical, and industrial applications. The company’s horizontal slurry pumps are designed for ultra-heavy-duty applications such as mill discharge, process plant, and tailings, high-pressure pipelines, as well as other specialty applications.

Size: 1 to 22
Capacity: 3.6m3/h - 5400m3/h
Head: 6m - 125m
Handing solids: 0mm - 130mm
Concentration: 0%-70%
Materials: Hyperchrome alloy, Rubber, Polyurethane, Ceramic, Stainless steel, etc.

• Heavy-duty construction with a through-bolt design provides ease of maintenance and minimal downtime.
• Ductile iron fully lined casing provides durability, strength, safety, and long service life.
• Large diameter, slow turning, high-efficiency impellers designed to achieve maximum wear life and low operating costs.
• Large, open internal passages are designed to reduce internal velocities, maximize wear life, and lower operating costs.

• Thick elastomer or alloy bolt-in liners provide superior corrosion resistance plus offer ease of liner change-out and interchangeability to reduce overall maintenance costs and maximize wear life.
• Minimal shaft/impeller overhang reduces shaft deflection and increases packing life.
• Effective expeller prolongs packing life while reducing or eliminating flush water requirements.

• The cartridge-style bearing assembly allows for maintenance in a clean environment without the removal of the pump, resulting in reliable operation and prolonged bearing life.
• Grease or oil lubrication bearing assembly options offer ease of maintenance and reduced downtime.
• Optional dry running shaft seal reduces or eliminates flush water requirements.
• Interchangeability of seal arrangements - full flush, low flow, centrifugal, or mechanical seals may be fitted to any sized slurry pump.

Mining & Mineral Processing
The slow running speeds of the heavy-duty horizontal slurry pump, together with the comprehensive choice of abrasion-resistant alloys and rubber, provide unrivaled performance and service life for all abrasive mining and minerals processing applications.

Chemical Process
The interchangeability of alloy and rubber components in the same pump casing, together with a wide range of mechanical seals, makes the heavy-duty rubber-lined slurry pump the most flexible choice for the chemical plant environment.

Sand & Gravel
Designed for an easy and simple strip down and re-assembly, the horizontal slurry pump minimizes downtime, making it the ideal choice where installed stand-by pumps are not available.

Sugar Processing
The premium reliability and service life of the horizontal slurry pump is specified by many sugar plant engineers worldwide where uninterrupted pump operation during the sugar campaign is a critical requirement.

Flue Gas Desulphurisation
The new generation of specially formulated abrasion and corrosion-resistant alloys, together with the very latest rubber technology, positions the company’s Pumps as a major supplier of slurry pumps to the FGD industry.

Oil & Gas Exploration
Over several years company has developed the proven design of the TH Heavy Duty Slurry Pump ranges to suit the specific demands of offshore applications. The company offers the most reliable top-side solution to erosive wear.

Industrial Applications
Wherever abrasive solids are causing premature failure of slurry pumps, the horizontal slurry pump range has the right combination of performance, wear life, and reliability to bring the customer the lowest cost of ownership.

China Slurry Pump is the world’s standard for heavy duties. A wide variety of impellers and shaft seals provide a perfect fit for a wide range of applications. The China slurry pump provides excellent wear life while maintaining efficiency during the wear cycle providing the best total operating cost.

The China slurry pump, together with the MC series slurry pump, provides a complete selection for most all duties in the mill. From cyclone feed to regrind, flotation, and tailings, the China slurry pump is the best choice.

Size: 1 to 22
Capacity: 3.6m3/h - 5400m3/h
Head: 6m - 125m
Handing solids: 0mm - 130mm
Concentration: 0% - 70%
Materials: Hyperchrome alloy, Rubber, Polyurethane, Ceramic, Stainless steel, etc.

• Bearing assembly: A large diameter shaft with a short overhang minimizes deflection and contributes to long bearing life. Only four through bolts are required to hold the cartridge-type housing in the frame.
• Liners: Easily replaceable liners are bolted, and not glued to the casing for positive attachment and ease of maintenance. Hard metal liners are completely interchangeable with pressure-molded elastomer.

• Elastomer seal rings back all liner joints.
• Casing: Casing halves of cast or ductile iron with external reinforcing ribs provide high operating pressure capabilities and an extra measure of safety.
• Impeller: Front and rear shrouds have pump-out vanes that reduce recirculation and seal contamination. Hard metal and molded elastomer impellers are completely interchangeable.

• Cast-in impeller threads require no inserts or nuts. High efficiency and high head designs are also available.
• Throat bush wear is reduced and maintenance is simplified by the use of tapered mating faces to allow positive accurate alignment during assembly and simple removal.
• One-piece frame: A very robust one-piece frame cradles the cartridge-type bearing and shaft assembly.
• An external impeller adjustment mechanism is provided below the bearing housing for easy adjustment of impeller clearance.

THF Horizontal Froth Pumps are designed to handle heavy froth. A large oversized inlet with a unique impeller inducer blade easily handles heavy froth and higher viscosity dense slurries. The horizontal froth pumps have proven valuable for very dense slurries where viscosity becomes a pumping issue for the standard slurry pumps.

Size: 2 to 14

Capacity: 50m3/h - 3150m3/h

Head: 5m - 65m

Materials: Hyperchrome alloy, Rubber, Polyurethane, Ceramic, Stainless steel, etc.

• Heavy-duty construction with a through-bolt design provides ease of maintenance and less downtime.
• A dual iron fully lined casing provides durability, strength, and a long service life.
• Large diameter, slow turning, high-efficiency impellers maximize wear life and lower TOC.

• Large, open internal passages reduce internal velocities maximizing wear life and resulting in lower operating costs.
• Unique impeller design for most difficult froth applications.
• Thick elastomer or metal bolt-in liners provide superior corrosion resistance plus offer ease of liner change-out and inter-mixability to reduce overall maintenance costs and maximize wear life.

• Minimal shaft/impeller overhang reduces shaft deflection and increases packing life. The cartridge-style bearing assembly allows for maintenance in a clean environment without the removal of the pump, resulting in reliable operation and prolonged bearing life.
• Standard TH can be converted by replacing the cover plate, throat bush, and impeller.
• Full flush, low flow, or dry-running centrifugal seals minimize water usage and operating costs.

TH20x18 Mill Discharge Pump is the world’s standard for heavy-duplication. It is designed to easily manage large-size particles in dense abrasive slurries and offers the right combination of ruggedness, durability, hydraulics, and materials. From the most difficult mill discharge to water-flushed crusher, from cyclone feed to regrind, flotation, and tailings, The 20x18 slurry pump is the best choice.

Size: 20x18
Capacity: 2520m3/h - 5400m3/h
Head: 13m - 57m
Speed: 200rpm - 400rpm
NPSHr: 5m - 10m
Eff: 85%
Power: Max. 1200kw
Handling solids: 140mm
Seal arrangement: Packing seal, Expeller seal, Mechanical seal
Materials: High chrome alloy, Rubber, Polyurethane, Ceramic etc.

• Bearing assembly: A large diameter shaft with a short overhang minimizes deflection and contributes to long bearing life. Only four through bolts are required to hold the cartridge-type housing in the frame.
• Liners: Easily replaceable liners are bolted, and not glued to the casing for positive attachment and east of maintenance. Hard metal liners are completely interchangeable with pressure-molded elastomer.
• Elastomer seal rings back all liner joints.

• Casing: Casing halves of cast or ductile iron with external reinforcing ribs provide high operating pressure capabilities and an extra measure of safety.
• Impeller: Front and rear shrouds have pump-out vanes that reduce recirculation and seal contamination. Hard metal and molded elastomer impellers are completely interchangeable. Cast-in impeller threads require no inserts or nuts. High efficiency and high head designs are also available.

• Throat bush wear is reduced and maintenance is simplified by the use of tapered mating faces to allow positive accurate alignment during assembly and simple removal.
• One-piece frame: A very robust one-piece frame cradles the cartridge-type bearing and shaft assembly.
• An external impeller adjustment mechanism is provided below the bearing housing for easy adjustment of impeller clearance.

Packing Seal

As one of the most commonly used seals for rotating shafts, the packing seal can come with a low-flush or full-flush arrangement which uses flushing water to prevent media from escaping the pump housing. This kind of seal is suitable for use under all pumping conditions. In situations where corrosive solids or high temperatures might be encountered, Teflon or aramid fiber is used as the packing material for the gland. For high abrasion conditions, a ceramic shaft sleeve is available.

Expeller Seal

The combination of impeller and expeller creates the pressure needed to seal against leakage. Together with the gland seal or lip seal which is used as the shut-down seal, this type of seal can handle sealing requirements for applications where a full-flush gland seal is impractical due to lack of water on the site, or sealing water is allowed to enter inside the pumping chamber to dilute the slurry.

Mechanical Seal

Advanced sealing technique without sealing leakage. The advantages are integrating construction, convenient installation & replacement. The design of the mechanical seal and seal box is suitable for liquid flow conditions, so it has high abrasion and vibration resistance. Mechanical seals can be used in various severe conditions.

Mining & Mineral Processing
The slow running speeds together with the comprehensive choice of abrasion-resistant alloys and elastomers, provide unrivaled performance and service life for all abrasive mining and minerals processing applications.

Chemical Process

The interchangeability of alloy and elastomer components in the same pump casing, together with a wide range of mechanical seals, makes it the most flexible choice for the chemical plant environment.

Sand & Gravel
Designed for easy and simple strip down and re-assembly, minimizes downtime, making it the ideal choice where installed stand-by pumps are not available.

Sugar Processing

The premium reliability and service life specified by many sugar plant engineers worldwide where uninterrupted pump operation during the sugar campaign is a critical requirement.

Flue Gas Desulphurisation
The new generation of specially formulated abrasion and corrosion-resistant alloys, together with the very latest elastomer technology, positions the company’s Pumps as a major supplier of pumps to the FGD industry.

Oil & Gas Exploration
Over several years company has developed the proven design of the TH Heavy Duty Slurry Pump ranges to suit the specific demands of offshore applications. The company offers the most reliable top-side solution to erosive wear.

Industrial Applications
Wherever abrasive solids are causing premature failure of pumps, the company’s Heavy Duty Slurry Pump range has the right combination of performance, wear life, and reliability to bring the customer the lowest cost of ownership.

TH18x16 Tailings Slurry Pumps are designed for the continuous pumping of highly abrasive, high-density slurries with minimal maintenance requirements, the horizontal centrifugal pumps will maintain high efficiencies over the wear life of its components. The rubber and metal-lined pumps feature casings which are radially split into two halves. Minimum casing bolts reduce maintenance and minimize downtime.

Size: 18x16
Capacity: 2160m3/h - 5040m3/h
Head: 8m - 66m
Speed: 200rpm - 500rpm
NPSHr: 4.5m - 9m
Eff: 80%
Power: Max. 1200kw
Handling solids: 135mm
Seal arrangement: Packing seal, Expeller seal, Mechanical seal
Materials: High chrome alloy, Rubber, Polyurethane, Ceramic etc.

• Heavy-duty construction with a through-bolt design provides ease of maintenance and minimal downtime.
• Ductile iron fully lined casing provides durability, strength, safety, and long service life.
• Large diameter, slow turning, high-efficiency impellers designed to achieve maximum wear life and low operating costs.
• Large, open internal passages are designed to reduce internal velocities, maximize wear life, and lower operating costs.

• Thick elastomer or alloy bolt-in liners provide superior corrosion resistance plus offer ease of liner change-out and interchangeability to reduce overall maintenance costs and maximize wear life.
• Minimal shaft/impeller overhang reduces shaft deflection and increases packing life.
• The cartridge-style bearing assembly allows for maintenance in a clean environment without the removal of the pump, resulting in reliable operation and prolonged bearing life.

• Grease or oil lubrication bearing assembly options offer ease of maintenance and reduced downtime.
• Optional dry running shaft seal reduces or eliminates flush water requirements.
• Effective expeller prolongs packing life while reducing or eliminating flush water requirements.
• It features a throat bush and impeller combination designed to enhance efficiency and improve wear performance.

• Interchangeability of seal arrangements – full flush, low flow, centrifugal, or mechanical seals may be fitted to any sized pump.

A Packing Seal is a general shaft seal. It applies to various pumping conditions, PTFE and Graphite materials of packing can be used in high corrosive slurries or high-temperature conditions. Using ceramic shaft sleeve, for high abrasion conditions. The ceramic shaft sleeve is available.

The Expeller Seal is an impeller force of reversed centrifugal force that prevents slurry leakage. An expeller seal can be used on the single-stage pump when the positive pressure of the pump inlet is no more than 10% of the pump outlet pressure or on the first-stage pump in the pump series.

Mechanical Seal is an advanced sealing technique without sealing leakage. The advantages are integrating construction, convenient installation & replacement. The design of the mechanical seal and seal box is suitable for liquid flow conditions, so it has high abrasion and vibration resistance. Mechanical seals can be used in various severe conditions.

Wet crushers, SAG mill discharge, Ball mill discharge, Rod mill discharge, Ni acid slurry, Coarse sand, Coarse tailings, Phosphate matrix, Minerals concentrate, Heavy media, Dredging, Bottom/fly ash, Lime grinding, Oil sands, Mineral sands, Fine tailings, Phosphoric acid, Coal Flotation, Sugar beets, Process chemical, Pulp and paper, FGD, Wastewater, Aluminum oxide.

TH16x14 Minerals Slurry Pump is a cantilevered, horizontal, heavy-duty slurry pump. Designed for handling abrasive and high-density slurries in the minerals process, metallurgical, mining, coal, power, building material, and other industrial departments, etc. The 16x14 slurry pump can be installed in a multistage series. The metal lined and rubber lined are interchangeable as different medium.

Size: 16x14
Capacity: 1368m3/h - 3060m3/h
Head: 11m - 63m
Speed: 250rpm - 550rpm
NPSHr: 4m - 10m
Eff: 79%
Power: Max. 1200kw
Handling solids: 135mm
Seal arrangement: Packing seal, Expeller seal, Mechanical seal
Materials: High chrome alloy, Rubber, Polyurethane, Ceramic etc.

• Cantilevered, horizontal, centrifugal, single-stage, heavy-duty slurry pump.
• Long bearing life: The bearing assembly has with large diameter shaft and short overhang.
• Anti-abrasion wet parts: The wet parts can be made of pressure-molded rubber, they are completely interchangeable with metal wet parts.

• Easy adjustment of impeller: An impeller adjustment mechanism is provided below the bearing housing.
• Expeller seal, mechanical seal, and packing seal are available.
• Various drive types: DC (direct connection), V-belt drive, gearbox reducer, hydraulic couplings, VFD, SCR control, etc.

• Wide application: Designed for handling abrasive, high-density slurries in the metallurgical, mining, coal, power, building material, and other industrial departments.

Packing Seal

As one of the most commonly used seals for rotating shafts, the packing seal can come with a low-flush or full-flush arrangement which uses flushing water to prevent media from escaping the pump housing. This kind of seal is suitable for use under all pumping conditions. In situations where corrosive solids or high temperatures might be encountered, Teflon or aramid fiber is used as the packing material for the gland. For high abrasion conditions, a ceramic shaft sleeve is available.

Expeller Seal

The combination of impeller and expeller creates the pressure needed to seal against leakage. Together with the gland seal or lip seal which is used as the shut-down seal, this type of seal can handle sealing requirements for applications where a full-flush gland seal is impractical due to lack of water on the site, or sealing water is allowed to enter inside the pumping chamber to dilute the slurry.

Mechanical Seal

TH heavy-duty slurry pump utilizes a leak-proof mechanical seal design which allows easy installation and replacement. Other types of mechanical seals are among the options to suit the slurry pump for various pumping applications.

Grease Lubricated Bearing Assembly

The grease-lubricated bearing assembly houses a large-diameter shaft in its unique bearing cartridge designed especially for heavy-duty tasks. Due to its compact design, the bearing takes up little space while providing minimum vibration and deviation. Grease lubrication minimizes the possibility of oil leakage and little extra maintenance effort is needed. The rotor is easily adjustable. Users can install several rotors operating in series.

Horizontal Axially-Split Bearing Assembly

Lubricated by oil, the axially split bearing assembly features a large-diameter shaft and a short cantilever. It delivers high rigidity and is unlikely to deform or vibrate even when highly abrasive solids are encountered. The bearing is directly mounted inside the bearing support which can be split into 2 halves along its center line. This mounting method allows for ease of disassembly, inspection, and adjustment of bearing.

The water cooling system effectively cools down the hot bearing, greatly improving its use life.

Cartridge Type Oil-Lubricated Bearing Assembly

Spacious cartridge design allows for the installation of a large-diameter rotating shaft. Built specially to handle heavy-duty tasks, the met metric searing is lubricated by thin oil. Users can install several bearings operating in series. Compact design and high reliability are 2 major benefits of this bearing for its end users.

The TH16x14 Minerals Slurry Pumps are widely used to transport corrosive/ abrasive and high-concentration slurry in many industries. Such as Gold, Silver, Iron ore, Tin, Steel, Coal, Titanium, Copper, Mineral sands, Lead and Zinc. Various other industries include Molybdenum, Electric Utilities, Oil Shale, Water & Sewage Utilities, Building areas, Sand & Gravel, Tobacco and Agriculture (hog, poultry, dairy manure), Mining & Minerals, Grinding and screening, Hydro cyclone separation, →

Magnetic separation, Flotation, Thickening, Filtration, Leaching, solvent extraction and electrowinning, Pelletising, Tailings, Metallurgy, Roasting, Annealing and pickling, Coke quenching, Hot strip milling, Neutralisation, Mud handling and waste treatment.

TH14x12 Diesel Engine Slurry Pumps are the most comprehensive range of centrifugal slurry pumps for use in mining, dredging, chemical, mill discharge, power sector, and tailings as well as specialty applications. It is designed for continuous pumping of high abrasive, high-density slurries.

Size: 14x12
Capacity: 1152m3/h - 2772m3/h
Head: 13m - 63m
Speed: 300rpm - 600rpm
NPSHr: 3m - 10m
Eff: 79%
Power: Max. 560kw
Handling solids: 90mm
Seal arrangement: Packing seal, Expeller seal, Mechanical seal
Materials: High chrome alloy, Rubber, Polyurethane, Ceramic etc.

• Available with only one impeller, the TH slurry pump is a horizontal cantilever unit that allows slurry to enter the pumping chamber from only one suction side.
• Another key feature of this horizontal pump is the double-casing design. Parts in contact with the slurry are replaceable and made of high chrome for maximum resistance to wear and abrasion. Rubber and polyurethane are selected to make liners and impellers, ensuring excellent serviceability, longevity, and durability under all conditions.

• This series of heavy-duty slurry pumps offers a variety of impeller options to meet a broad range of operating conditions and customer-specific requirements.
• The rotating shaft is sealed by way of a packing seal. The expeller dynamic seal and other mechanical seal arrangements are among the options as well.

• Several pumps can be connected in series for use.
• The discharge outlet has 8 positions at 45-degree intervals that can be selected to meet the installation and application requirements.

Packing Seal

As one of the most commonly used seals for rotating shafts, the packing seal can come with a low-flush or full-flush arrangement which uses flushing water to prevent media from escaping the pump housing. This kind of seal is suitable for use under all pumping conditions. In situations where corrosive solids or high temperatures might be encountered, Teflon or aramid fiber is used as the packing material for the gland. For high abrasion conditions, a ceramic shaft sleeve is available.

Expeller Seal

The combination of impeller and expeller creates the pressure needed to seal against leakage. Together with the gland seal or lip seal which is used as the shut-down seal, this type of seal can handle sealing requirements for applications where a full-flush gland seal is impractical due to lack of water on the site, or sealing water is allowed to enter inside the pumping chamber to dilute the slurry.

Mechanical Seal

TH heavy-duty slurry pump utilizes a leak-proof mechanical seal design which allows easy installation and replacement. Other types of mechanical seals are among the options to suit the slurry pump for various pumping applications.

Feeding slurry to hydro cyclones or pressure filters, dredging river, froth floatation, minerals recycling, mine dewatering, desulfurization in power plants, coal washing, metallurgy, pulp and paper manufacture, and chemical engineering.

TH12x10 Sand Slurry Pump is a horizontal, cantilevered centrifugal slurry pump with reasonable construction, reliable operation, and long service life. It is widely used in transporting abrasive and corrosive slurry in mining, metallurgy, electric power, coal, chemicals, buildings, etc. Especially used for wash plants, mineral processing plants, power plants, etc.

Size: 12x10
Capacity: 720m3/h - 1980m3/h
Head: 7m - 68m
Speed: 300rpm - 800rpm
NPSHr: 2.5m - 7.5m
Eff: 82%
Power: Max. 560kw
Handling solids: 86mm
Seal arrangement: Packing seal, Expeller seal, Mechanical seal
Materials: High chrome alloy, Rubber, Polyurethane, Ceramic etc.

• Impeller: High chrome alloy and Natural rubber impellers are completely interchangeable. Impellers can be produced from 2 vans to 8 vans as required. High efficiency, high head, and OEM designs are also available.
• Liner: High chrome alloy and Natural rubber liners are completely interchangeable. Easily replaceable liners are bolted, not glued, to the casing for positive attachment and east of maintenance.

• Bearing assembly: A large diameter shaft with a short overhang minimizes deflection and contributes to long bearing life. Only four through bolts are required to hold the cartridge-type housing in the frame.
• Pump Casing: Casing halves of cast or ductile iron with external reinforcing ribs provide high operating pressure capabilities and an extra measure of safety.

• Sealing type: Packing seal, Expeller seal, and Mechanical seal are available for choice.
• Frame base: A very robust one-piece frame cradles the cartridge-type bearing and shaft assembly. An external impeller adjustment mechanism is provided below the bearing housing for easy adjustment of impeller clearance.

Wet crushers, SAG mill discharge, Ball mill discharge, Rod mill discharge, Ni acid slurry, Coarse sand, Coarse tailings, Phosphate matrix, Minerals concentrate, Heavy media, Dredging, Bottom/fly ash, Lime grinding, Oil sands, Mineral sands, Fine tailings, Phosphoric acid, Coal, Flotation, Sugar beets, Process chemical, Pulp and paper, FGD, Wastewater, Aluminum oxide.

TH10x8 Gypsum Slurry Pump is a heavy-duty pump for handling corrosive and abrasive slurries. It is mainly used for transporting Solid-liquids mixture with solid suspending (like gypsum, lime, limestone, ore, sand, gravel, ash, etc.) or strongly abrasive and corrosive slurries with high-concentration slurry. The 10x8 Gypsum slurry pump uses perfect impeller structure ensures satisfactory performance with a long life and needs minimum maintenance requirements.

Size: 10x8
Capacity: 540m3/h - 1368m3/h
Head: 10m - 61m
Speed: 400rpm - 1100rpm
NPSHr: 4m - 10m
Eff: 79%
Power: Max. 560kw
Handling solids: 76mm
Seal arrangement: Packing seal, Expeller seal, Mechanical seal
Materials: Hyperchrome alloy, Rubber, Polyurethane, Ceramic, etc.

• The Large diameter, slow-turning, high-efficiency impellers are designed to achieve maximum wear life and lowest maintenance.
• The Large, open internal passages are designed to reduce internal velocities, maximize wear life, and lower maintenance. Heavy-duty construction with a through-bolt design provides ease of maintenance and Min downtime.

• The Replaceable and Interchangeable Wet End Parts are lower the stocking cost, easy to repair, and minimize downtime.
• The Ductile iron fully lined casing provides durability, strength, safety, and a long service life while the Grey iron liner is the economical solution that could satisfy most customers' requirements when you don’t need the pumps to work 24x7.

• Minimal shaft/impeller overhang reduces shaft deflection and increases packing life and the time between failures.
• The cartridge-style bearing assembly allows for maintenance in a clean environment without the removal of the pump, resulting in reliable operation and prolonged bearing life, which is another way to increase the mean time between failures.

• Grease or oil lubrication bearing assembly options offer ease of maintenance and reduced downtime.
• Lower NPSH requirements result in enhanced hydraulic performance and extended wear life.
• The metal or rubber parts are available for different work conditions Max the wear life and lowest the maintenance cost.

Mining, FGD, Ash handing, Lime mud, Alumina Industry, Gypsum, Chemical slurries, Cyclone feeds, Phosphoric acid, Power Plant, Limestone, Tailings, Waste sludge, Dredging, Potash Fertilizer Plant, Mineral processing, Lime slurries, Coarse sand, Construction, etc.

TH8x6 Heavy Duty Slurry Pump is a kind of horizontal centrifugal slurry pump for heavy-duty applications. It is suitable for delivering low-density slurry for metallurgical, mining, coal, and building material departments. The shaft seal adopts both a gland seal and a centrifugal seal. The TH8x6 pump operates in high efficiency with stable capacity to save floor area. The wetted parts are changeable with wear-resistant metal liners and rubber liners.

Size: 8x6
Capacity: 360m3/h - 828m3/h
Head: 10m - 61m
Speed: 500rpm - 1140rpm
NPSHr: 2m - 9m
Eff: 72%
Power: Max. 300kw
Handling solids: 63mm
Seal arrangement: Packing seal, Expeller seal, Mechanical seal
Materials: High chrome alloy, Rubber, Polyurethane, Ceramic, etc.

• Heavy-duty construction with a through-bolt design provides ease of maintenance and minimal downtime.
• Ductile iron fully lined casing provides durability, strength, safety, and long service life.
• Large diameter, slow turning, high-efficiency impellers designed to achieve maximum wear life and low operating costs.
•  Large, open internal passages are designed to reduce internal velocities, maximize wear life, and lower operating costs.

• Thick elastomer or alloy bolt-in liners provide superior corrosion resistance plus offer ease of liner change-out and interchangeability to reduce overall maintenance costs and maximize wear life.
• Minimal shaft/impeller overhang reduces shaft deflection and increases packing life.
• The cartridge-style bearing assembly allows for maintenance in a clean environment without the removal of the pump, resulting in reliable operation and prolonged bearing life.

• Grease or oil lubrication bearing assembly options offer ease of maintenance and reduced downtime.
• A dry running shaft seal reduces or eliminates flush water req.
• Effective expeller prolongs packing life while reducing or eliminating flush water requirements.
• It features a throat bush and impeller combination designed to enhance efficiency and improve wear performance.
• Interchangeability of seal arrangements: full flush, low flow, centrifugal, or mechanical seals can be fitted to any sized pump.

Packing Seal
As one of the most commonly used seals for rotating shafts, the packing seal can come with a low-flush or full-flush arrangement which uses flushing water to prevent media from escaping the pump housing. This kind of seal is suitable for use under all pumping conditions. In situations where corrosive solids or high temperatures might be encountered. Teflon or aramid fiber is used as the packing material for the gland. For high abrasion conditions, a ceramic shaft sleeve is available.

Expeller seal
The combination of impeller and expeller creates the pressure needed to seal against leakage. Together with the gland seal or lip seal which is used as the shut-down seal, this type of seal can handle sealing requirements for applications where a full-flush gland seal is impractical due to lack of water on the site, or sealing water is allowed to enter inside the pumping chamber to dilute the slurry.

Mechanical Seal:
TH heavy-duty slurry pump utilizes a leak-proof mechanical seal design which allows easy installation and replacement. Other types of mechanical seals are among the options to suit the slurry pump for various pumping applications. The company utilizes special ceramics and alloys of high strength and hardness on parts that are subjected to friction.

The unique design and seamless fit between the mechanical seal and seal chamber provide excellent resistance to abrasion and shock that ensures its effectiveness under the toughest conditions.

Mining & Mineral Processing
The slow running speeds of the TH Heavy Duty Slurry Pump, together with the comprehensive choice of abrasion-resistant alloys and elastomers, provide unrivaled performance and service life for all abrasive mining and minerals processing applications.

Chemical Process
The interchangeability of alloy and elastomer components in the same pump casing, together with a wide range of mechanical seals, makes the TH Heavy Duty Slurry Pump the most flexible choice for the chemical plant environment.

Sand & Gravel
Designed for an easy and simple strip down and re-assembly, the TH Heavy Duty Slurry Pump minimizes downtime, making it the ideal choice where installed stand-by pumps are not available.

Sugar Processing
The premium reliability and service life of the TH Heavy Duty Slurry Pump is specified by many sugar plant engineers worldwide where uninterrupted pump operation during the sugar campaign is a critical requirement.

Flue Gas Desulphurisation
The new generation of specially formulated abrasion and corrosion-resistant alloys, together with the very latest elastomer technology, positions the company’s Pumps as a major supplier of pumps to the FGD industry.

Oil & Gas Exploration
Over several years company has developed the proven design of the TH Heavy Duty Slurry Pump ranges to suit the specific demands of offshore applications. The company offers the most reliable top-side solution to erosive wear.

Industrial Applications
Wherever abrasive solids are causing premature failure of pumps, the TH Heavy Duty Slurry Pump range has the right combination of performance, wear life, and reliability to bring the customer the lowest cost of ownership.

TH6x4 Coal Slurry Pumps are designed for handling highly abrasive, high-density slurries with excellent wear life while maintaining efficiency during the wear cycle providing the best total operating cost. The coal slurry pumps can be used in many applications, such as Coal prep, Pipeline transport, High-velocity hydraulic transport, Mineral processing, Cyclone feeds, Aggregate processing, Fine primary mill grinding, Chemical slurry service, Tailings, Secondary grinding, etc.

Size: 6x4
Capacity: 144m3/h - 720m3/h
Head: 12m - 118m
Speed: 600rpm - 1550rpm
NPSHr: 3m - 8m
Eff: 65%
Power: Max. 260kw
Handling solids: 57mm
Seal arrangement: Packing seal, Expeller seal, Mechanical seal
Materials: High chrome alloy, Rubber, Polyurethane, etc.

• Bearing assembly: A large diameter shaft with a short overhang minimizes deflection and contributes to long bearing life. Only four through bolts are required to hold the cartridge-type housing in the frame.
• Liners: Common material hard metal liners are completely interchangeable with pressure-molded elastomer. Elastomer seal rings back all liner joints. Easily replaceable liners are bolted, not glued, to the casing for positive attachment and east of maintenance.

• Impeller: Common material hard metal and molded elastomer impellers are completely interchangeable. Front and rear shrouds have pump-out vanes that reduce recirculation and seal contamination.
• Throat bush: Common material hard metal and molded elastomer impellers are completely interchangeable. Wear is reduced and maintenance is simplified by the use of tapered mating faces to allow positive accurate alignment during assembly and simple removal.

• Pump casing: Casing halves of cast or ductile iron with external reinforcing ribs provide high operating pressure capabilities and an extra measure of safety.
• One-piece frame: A very robust one-piece frame cradles the cartridge-type bearing and shaft assembly. An external impeller adjustment mechanism is provided below the bearing housing for easy adjustment of impeller clearance.

A Packing Seal is the most popular type of seal. Clean water at a certain pressure is injected into the packing through the lantern restrictor, preventing leakage from the casing.

The Expeller Seal generates a reverse centrifugal force to prevent leakage. Suitable for most slurry pumping applications providing a major advantage where no gland water is required.

Mechanical seal is used for applications where no extra substance is allowed to mix with the fluid being pumped, such as the chemical or food industry.

Wet crushers, Ni acid slurry, Minerals concentrate, Oil sands, Coal, Pulp and paper, SAG mill discharge, Coarse sand, Hevy media, Mineral sands, Flotation, FGD, Ball mill discharge, Coarse tailings, Dredging, Fine tailings, Sugar beets, Waste-water, Rod mill discharge, Phosphate matrix, Bottom/fly ash, Lime grinding, Phosphoric acid, Process chemical, Aluminum oxide.

TH4x3 Silica Sand Pump is an end-suction, split-case, centrifugal slurry pump that has set the world standard for heavy-duty abrasive pumping applications for decades. With large shaft diameters, heavy-duty bearing assemblies, and robust slurry pumping capacity, the company’s pumps provide a cost-effective and ideal alternative to longer lead times and the difficulty associated with working with large multinationals.

Size: 4x3
Capacity: 79.2m3/h - 252m3/h
Head: 5m - 97m
Speed: 600rpm - 2200rpm
NPSHr: 2m - 6m
Eff: 71%
Power: Max. 120kw
Handling solids: 38mm
Seal arrangement: Packing seal, Expeller seal, Mechanical seal
Materials: A05, A07, A33, A49, A51, A61, R08, R26, R55, U01, etc.

• Impellers: A wide variety of metallurgic and elastomeric options (metal and elastomer interchangeable) – pump out vanes on rear and front (on closed impellers) reduce recirculation within the pump, and aid in preventing seal contamination – optional castings of straight or semi-Francis vanes (from 3 to 8 vanes on certain sizes) offer wider hydraulic options in single sizes.

• Liners: A wide variety of metallic and elastomeric options (metal and elastomer liners are interchangeable) to select from to provide the longest wear life possible.
• Bearing assembly: Cartridge-style bearing housing allows for removal from the pump and assembly in a controlled environment. Oversized shaft diameters and reduced overhang in the wet end contribute to long life and reliability in the field.

• Seal arrangements: Expeller Centrifugal Seal - no external sealing water required, where applicable.
• Stuffing Box: Flushed gland sealing with braided packing and a lantern ring. Mechanical Seals - advanced sealing technique without sealing leakage.

Mining & Mineral Processing
The slow running speeds of the TH Heavy Duty Slurry Pump, together with the comprehensive choice of abrasion-resistant alloys and elastomers, provide unrivaled performance and service life for all abrasive mining and minerals processing applications.

Chemical Process
The interchangeability of alloy and elastomer components in the same pump casing, together with a wide range of mechanical seals, makes the TH Heavy Duty Slurry Pump the most flexible choice for the chemical plant environment.

Sand & Gravel
Designed for an easy and simple strip down and re-assembly, the TH Heavy Duty Slurry Pump minimizes downtime, making it the ideal choice where installed stand-by pumps are not available.

Sugar Processing
The premium reliability and service life of the TH Heavy Duty Slurry Pump is specified by many sugar plant engineers worldwide where uninterrupted pump operation during the sugar campaign is a critical requirement.

Flue Gas Desulphurisation
The new generation of specially formulated abrasion and corrosion-resistant alloys, together with the very latest elastomer technology, positions the company’s Pumps as a major supplier of pumps to the FGD industry.

Oil & Gas Exploration
Over several years company has developed the proven design of the TH Heavy Duty Slurry Pump ranges to suit the specific demands of offshore applications. The company offers the most reliable top-side solution to erosive wear.

Industrial Applications
Wherever abrasive solids are causing premature failure of pumps, the TH Heavy Duty Slurry Pump range has the right combination of performance, wear life, and reliability to bring the customer the lowest cost of ownership.

TH3x2C Mining Slurry Pump is featured with high efficiency, wear resistance, stable performance, and excellent interchangeability. The material of the liner and impeller adopts wear-resistant metal or rubber, the discharge branch can be positioned at 8 different positions at intervals of 45 degrees, and the pumps may be installed in multistage design, and may be driven by belt or direct coupling.

The seal of the shaft may be adoptable of gland seal, expeller seal, or mechanical seal. The pump should rotate clockwise viewing from the driving end. TH3x2C slurry pumps are suitable for delivering abrasive middle and low-density slurries in metallurgical, mining, coal and power plants, steel mill and chemical industries, etc.

Size: 3x2
Capacity: 39.6m3/h - 86.4m3/h
Head: 12m - 64m
Speed: 1300rpm - 2700rpm
NPSHr: 4m - 6m
Eff: 55%
Power: Max. 30kw
Handling solids: 25mm
Seal arrangement: Packing seal, Expeller seal, Mechanical seal
Materials: A05, A07, A33, A49, A51, A61, R08, R26, R55, U01, etc.

• Double casings design, wide passage for solids.
• Bearing assembly & frame: Both standard and high-capacity types available.
• A large-diameter shaft with a short overhang minimizes deflection and vibration. The heavy-duty roller bearing is housed in a removable bearing cartridge.

• The pump body is fastened with the frame by minimum bolts. Impeller adjustment is provided in a convenient position below the bearing assembly.
• Impeller & liner material: High chrome alloy, rubber polyurethane, etc. High-efficiency impeller available: up to 86.5% for certain types.
• Interchangeable wet parts material: High chrome alloy metal - PH: 5-12, natural rubber - PH: 4-12.

• Shaft seal: Packing seal, Centrifugal seal, Mechanical seal.
• Discharge branch: 8 positions in each 45°.
• Driving type: V-belt, flexible coupling, gearbox, hydraulic coupler.

Wet crushers, SAG mill discharge, Ball mill discharge, Rod mill discharge, Ni acid slurry, Coarse sand, Coarse tailings, Phosphate matrix, Minerals concentrate, Heavy media, Dredging, Bottom/fly ash, Lime grinding, Oil sands, Mineral sands, Fine tailings, Phosphoric acid, Coal, Flotation, Sugar beets, Process chemical, Pulp and paper, FGD, Wastewater Aluminum oxide.

TJ China Slurry Pump is a new generation of centrifugal slurry pumps based on modern hydromechanics and mechanics theories. TJ series slurry pumps are designed for heavy-duty high-head applications like ash removal in power plants mining tailing, and oil lubrication.

The water-cooling design makes the bearings always work at lower temperatures, directly connected drives are always optional by trimming the impeller to the appropriate diameter to get performance just in need, saving the cost for the variable-frequency motor. Specially designed liners and impeller structures help pumps get higher efficiency and high head.

Size: 40mm - 300mm
Capacity: 4.5m3/h - 2339m3/h
Head: 6m - 134m
Handing solids: 0mm - 96mm
Concentration: ≤70%
Materials: Hyperchrome alloy, Rubber, Polyurethane, Ceramic, Stainless steel, etc.

• Single stage, single suction, overhang shaft, centrifugal, double casing, hard metal horizontal slurry pump design.
• Base: A single-piece base with an integrated adjustment mechanism for impeller clearance within the pump, bearing assembly locks into the base using six or eight heavy-duty bolts.

• Bearing Assembly: All bearings assembled with the highest quality tapered roller bearings in controlled environments to prevent lubricant and housing contamination, oversized shaft diameters, and reduced overhang in the wetted end contribute to long life and reliability in the field.

• Impellers: Hard metal impeller, pump out vanes on rear and front reduce recirculation within the pump, and aid in preventing seal contamination, optional castings of straight or semi-Francis vanes offer wider hydraulic options in single sizes.
• Liners: heavy-duty hard metal liner, with an active engineered attachment mechanism to casing via threaded bolts instead of unreliable glue.
• Throat bush: adjustable via cotters to account for wear over time and increase efficiency.

• Chemical Capability: Operating PH ranges from 5 to 12.
• Seals: 3 kinds of seal options to suit any process requirements.
• Gland Seal: The most popular and economical seal option, flush water with a certain pressure and inject it into packing to prevent slurry from leaking, gland seal is simple, easy to repair, and costs less.

• Expeller Seal (Centrifugal Seal): The rotating expeller generates negative force to prevent slurry from leaking. In applications like suction pressure is no more than 10% of discharge pressure, single stage pump, or the first stage of series pumps. The expeller seal needs no flush water, does not dilute slurry, and seals better than the gland seal.

• Mechanical Seal: Suits for high-seal applications such as chemical, and food industries where any other materials are forbidden to be mixed into fluid.

Mining, Mineral processing, Coal prep, Cyclone feeds, Tunnel, Mill discharge, Tailings, Fine tailings, Ash handing, Paper and Pulp, Lime grinding, Coarse sand, FGD, Phosphoric acid, Dredging, Construction, Alumina Industry, Mineral concentrate, Potash Fertilizer Plant, etc.

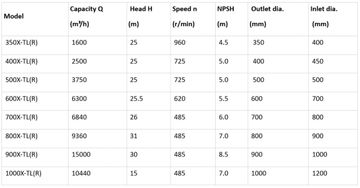

TL Light Duty Slurry Pumps are highly efficient centrifugal slurry pumps, Designed for handling light abrasive and low concentration slurries. It is widely used in mining, minerals processing, paper-making, coal washing, power plants, metallurgy, petrochemical, building material, dredging, and other industrial fields etc.

TL slurry pumps operate at high speed with small volumes to save floor area, the metal lined and rubber lined are interchangeable, Impeller adopts hyper chrome alloys or rubber, etc.

Size: 20mm - 650mm
Capacity: 2.34m3/h - 9108m3/h
Head: 4m - 60m
Pressure: Max. 250 PSI
Materials: Hyperchrome alloy, Rubber, Polyurethane, Ceramic, Stainless steel, etc.

• Heavy-duty construction with a through-bolt design provides ease of maintenance and results in less downtime.
• Ductile iron and fully lined casing provide durability, strength, and long service life.
• Large diameter, slow turning, high-efficiency impellers (up to 90%+) result in maximum wear life and lower operating costs.

• Large, open internal passages reduce internal velocities maximizing wear life and resulting in lower operating costs.
• Thick elastomer or metal bolt-in liners provide superior corrosion resistance plus offer ease of liner change-out and intermix ability to reduce overall maintenance costs and maximize wear life.
• Designed for rugged duties while offering higher efficiencies.

• Minimal shaft/impeller overhang reduces shaft deflection and increases packing life.
• The cartridge-style bearing assembly allows for maintenance in a clean environment without the removal of the pump, resulting in reliable operation and prolonged bearing life.
• Grease or oil lubrication bearing assembly options offer ease of maintenance and reduced downtime.

• Full flush gland, low flow, and dry running centrifugal seals reduce flush water usage minimizing pump operating costs.
• Mechanical seals reduce flush water usage minimizing pump operating costs.
• Erosion and corrosion-resistant elastomers or alloys are available to handle solids-laden and/or corrosive slurries.

A Packing Seal is a general shaft seal. It applies to various pumping conditions, PTFE and Graphite materials of Packing can be used in high corrosive slurries or high-temperature conditions. Using ceramic shaft sleeve, for high abrasion conditions. The ceramic shaft sleeve is available.

The Expeller Seal is an impeller force of reversed centrifugal force that prevents slurry leakage. An expeller seal can be used on the single-stage pump when the positive pressure of the pump inlet is no more than 10 % of the pump outlet pressure or on the first-stage pump in the pump series.

Mechanical Seal is an advanced sealing technique without sealing leakage. The advantages are integrating construction, convenient installation, and replacement. The design of the mechanical seal and seal box is suitable for liquid flow conditions, so it has high abrasion and vibration resistance. Mechanical seals can be used in various severe conditions.

Mining, Mineral processing, Coal prep, Cyclone feeds, Tunnel, Chemical slurries, Tailings, Mill grinding, Ash handing, Paper and Pulp, Waste sludge, Coarse sand, Lime mud, Phosphoric acid, Dredging, Construction, Alumina Industry, Power Plant, Potash Fertilizer Plant, etc.

A wide variety of impellers and shaft seals are perfect for various applications. The TH slurry pump provides excellent wear life while maintaining efficiency during the wear cycle providing the best total operating cost. These horizontal slurry pumps are designed for hyper-heavy-duty applications such as mill discharge, process plants, coal washing, dredging sands, tailings, high-pressure pipelines, and other specialty applications.

Size: 1 to 22
Capacity: 3.6m3/h - 5400m3/h
Head: 6m - 125m
Handing solids: 0mm - 130mm
Max. pressure: 2020 kPa
Materials: Hyperchrome alloy, Rubber, Polyurethane, Ceramic, Stainless steel, etc.

• Bearing assembly: A large diameter shaft with a short overhang minimizes deflection and contributes to long bearing life. Only four through bolts are required to hold the cartridge-type housing in the frame.
• Liners: Easily replaceable liners are bolted, not glued, to the casing for positive attachment and east of maintenance. Hard metal liners are completely interchangeable with pressure-molded elastomer.
• Elastomer seal rings back all liner joints.

• Casing: Casing halves of cast or ductile iron with external reinforcing ribs provide high operating pressure capabilities and an extra measure of safety.
• Impeller: Front and rear shrouds have pump-out vanes that reduce recirculation and seal contamination. Hard metal and molded elastomer impellers are completely interchangeable.
• Cast-inn impeller threads require no inserts or nuts. High efficiency and high head designs are also available.

• Throat bush: Wear is reduced and maintenance is simplified by the use of tapered mating faces to allow positive accurate alignment during assembly and simple removal.
• One-piece frame: A very robust one-piece frame cradles the cartridge-type bearing and shaft assembly.
• An external impeller adjustment mechanism is provided below the bearing housing for easy adjustment of impeller clearance.

Mining & Mineral Processing
The slow running speeds of the TH Heavy Duty Slurry Pump, together with the comprehensive choice of abrasion-resistant alloys and elastomers, provide unrivaled performance and service life for all abrasive mining and minerals processing applications.

Chemical Process
The interchangeability of alloy and elastomer components in the same pump casing, together with a wide range of mechanical seals, makes the TH Heavy Duty Slurry Pump the most flexible choice for the chemical plant environment.

Sand & Gravel
Designed for an easy and simple strip down and re-assembly, the TH Heavy Duty Slurry Pump minimizes downtime, making it the ideal choice where installed stand-by pumps are not available.

Sugar Processing
The premium reliability and service life of the TH Heavy Duty Slurry Pump is specified by many sugar plant engineers worldwide where uninterrupted pump operation during the sugar campaign is a critical requirement.

Flue Gas Desulphurisation
The new generation of specially formulated abrasion and corrosion-resistant alloys, together with the very latest elastomer technology, positions the company as a major supplier of pumps to the FGD industry.

Oil & Gas Exploration
Over several years company has developed the proven design of the TH Heavy Duty Slurry Pump ranges to suit the specific demands of offshore applications. The company offers the most reliable top-side solution to erosive wear.

Industrial Applications
Wherever abrasive solids are causing premature failure of pumps, the TH Heavy Duty Slurry Pump range has the right combination of performance, wear life, and reliability to bring the customer the lowest cost of ownership.

TJW Filter Press Feed Pump is a special pump for feeding filter press. It can transport various abrasive and erosive slurries with temperatures below 80℃, or as the pressurized feed pump for all kinds of filter press auxiliary, or process pumps for hydrometallurgy systems in Zinc, Copper, Cobalt, Nickel, Manganese, etc. TJW pumps are widely used in mining, minerals processing, smelting plants, coal washery, aluminum factories, chemicals, papermaking, starch, pharmaceuticals, dye, etc.

Size: 50mm - 250mm
Capacity: 30m3/h - 750m3/h
Head: 15m - 83m
Materials: Hyperchrome alloy, Rubber, Polyurethane, Ceramic, Stainless steel, etc.

• Advanced hydraulic design, reasonable structure, unique double impeller design.
• High efficiency, high abrasion and corrosion resistance, stable operation.
• In the beginning high capacity, low pressure.

• In the end low capacity, high pressure.
• Simple seal type, no seal water needed, no mechanical seal.
• Don't need vfd to adjust speed.

Feeding filter press, Aluminum factory, Hydrocyclone, Sands, Flood, Minerals processing, Papermaking, Slurries, Environmental, Power plant, Coal washery, Hydrometallurgy system, Waste sludge, Material plant, Suspended particles, Smelting plant, Waste residue, Chemicals, Pharmaceutical, etc.

TWD Centrifugal Effluent Pump is suitable for pumping effluent, sewage water, waste water, dirty water, and liquids that contain fiber or suspended solids. The appropriate temperature is under 80°C. (Suspended solids' size is not more than 80% of the outlet diameter)

TWD Centrifugal Effluent Pump wetted parts are made of stainless steel, so the pump is suitable for conveying wastewater that contains acid and alkaline or corrosive. Available for the chemical industry, scientific research departments are in the process of transferring chemical grout whose temperature is not higher than 80℃. It can also be used to convey pulp for the food industry.

Size: 25mm - 250mm

Capacity: 3m3/h -1250 m3/h
Head: 8.5m - 48m
Motor power: 1.1kw - 130kw
Medium temperature: ≤80℃
Materials: Cast iron, Cast steel, SS304L, SS316L, etc.

Effluent, Drainage, Impurity, Settling pond, Flood, Wastewater, Sanitary sewage, Paper and Pulp, Dirty water, Long-fiber materials, Sewage, Sewage disposal, Waste sludge, Foul sewer, Suspended particles, Chemical sewage, Mining water, Desilting pond, Feaces, etc.

TPW Horizontal Sewage Pumps are horizontal cantilever centrifugal sewage pumps, suitable for transferring sewage below 80℃. It's ideal for stationary commercial plants for polluted wastewater discharges, residential sewage stations, urban sewage treatment plant drainage systems, air defense systems, pumping stations, water plants, water supply facilities, hospitals, hotels sewage emissions, municipal engineering construction sites,

mining facilities with machines, biogas digesters in rural areas conveyor belt particles of sewage dirt, etc.

TPWF Stainless Steel Anti-Corrosion Sewage Pump is used to transport acids, alkalescency, and other sewage. It is widely used in chemical, petroleum, pharmacy, mining, paper making, power plants, urban sewage treatment, municipal engineering, and public facilities for sewage and feculence-containing particles.

Size: 2.5-8
Capacity: 36m3/h - 700 m3/h
Head: 8.5m - 48.5m
Motor power: 4kw - 75kw
Medium temperature: ≤80℃
Materials: Cast iron, Cast steel, SS304L, SS316L, etc.

Sewage, Effluent, Impurity, Settling Pond, Flood, Wastewater, Sanitary sewage, Paper and Pulp, Dirty water, Long-fiber materials, Chemical sewage, Sewage disposal, Waste sludge, Foul sewer, Suspended particles, Effluent, Mining water, Desilting Pond, Faeces, etc.

FGD Slurry Pump is a single-stage, single-suction horizontal centrifugal pump. It is mainly used as the circulating pump for an absorbent tower in the FGD system. It has the advantages of wide range capacity, high efficiency, better energy saving, etc. The wetted parts are designed with the CFD fluid simulating analysis technology to ensure its high-efficiency operation.

TL(R) FGD pump is the optimal pump type for transporting gypsum slurry, limestone slurry, or other abrasive and corrosive medium in thermal power plants.

Size: 350mm - 1000mm

Capacity: 1600m3/h - 15000m3/h
Head: 5m - 94m
Materials: Hyperchrome alloy, Rubber, Polyurethane, Ceramic, Stainless steel, etc.

• TL(R) FGD slurry pump wetted parts adopt the advanced flow simulation technology to guarantee reliable design and high operating efficiency.
• Corrosion-resistant and wear-resistant metal and rubber materials for options.
• The special integrated mechanical seal design is suitable for the Thermal Power Plant Fuel Gas Desulphurization process.

• The bearing at the pump end is a double-row taper roller bearing, and the bearing at the drive end is a cylindrical roller bearing. The bearings are lubricated with oil to longer the service time.
• Achieve the highest efficiency all the time by adjusting the bearing components to alter the impeller position in the pump chamber.
• The pump can be disassembled without dismantling suction or discharge pipes.

FGD system
It is mainly used as the circulating pump for the absorption tower in the FGD system.
Sulfuric acid phosphate fertilizer
Transporting acid, liquor, sewage, water, fluoride acid containing silica, phosphate slurry, and other media.

Non-ferrous metal smelting
Particularly used for lead, zinc, gold, silver, copper, manganese, cobalt, rare earth, and other various hydrometallurgical acids, corrosive pulp slurry (filter press equipped with) electrolyte, sewage, and other media delivery.

Oil & Chemical

Variety of sulfuric acid, hydrochloric acid, alkaline, clear liquid, or slurry oil posts. Titanium dioxide, iron pink production, various dyes, pigments production, and non-metallic mineral processing industries.

Chlor-alkali industries

Hydrochloric acid, caustic electrolyte, etc.

Water Treatment
Pure water, high pure water, wastewater (sewage leather, electroplating wastewater, electronics sewage, papermaking sewage, textile sewage, food waste water, sewage, sewage pharmaceutical industry, etc.)
Iron and Steel
Sulfuric acid system, hydrochloric acid positions, impurities sewage.

TZD Single Case Slurry Pumps are horizontal, axial suction, energy-saving slurry pumps. This series slurry pump is innovative in hydraulic designs, structural designs, and materials of castings after integrating congeneric products throughout the world. With the advantages of high efficiency, reasonable design, reliable operation, long working life, easy maintenance, and low running costs.

It is widely used for coal, ash handling, mineral processing, FGD, smeltery building materials industries, etc. Specially used to transport abrasive slurries containing solid particles.

Size: 25mm - 600mm
Capacity: 4.4m3/h - 7400m3/h
Head: 6.2m - 152m
Concentration: Max. 70%
Materials: Hyperchrome alloy, Rubber, Polyurethane, Ceramic, Stainless steel, etc.

• Horizontal, centrifugal, cantilever, single-case energy-saving slurry pump design.
• Wetted parts such as casing, impeller, and liner plate are made in anti-abrasion hyperchrome alloy.
• Horizontal split case, suspension type frame for maintaining easily.

• Packing or mechanical seal for options.
• Hydraulic optimization design, highly efficient and stable operation.
• The discharge branch can be oriented to any eight positions at an interval of 45 degrees.

Coal prep, Coal washery, Mineral processing, Dressing works, Ash handing, Chemical slurries, Tailings, Steel mill, Tunnel, Paper and Pulp, Waste sludge, Coarse sand, Lime mud, FGD, Dredging, Construction, Alumina Industry, Power Plant, Potash Fertilizer Plant, etc.

TZ High-Efficiency Slurry Pumps are designed for large capacity, high head, and multi-stages in series, it is especially used for ash and slag handling systems and slurry transportation in electric power, metallurgy, coal, and other industries. As the latest generation of centrifugal slurry pump products, TZ slurry pumps can meet diversified working conditions. It is also becoming increasingly popular among end users.

Size: 65mm - 300mm
Capacity: 37m3/h - 1919m3/h
Head: 5m - 94m
Handing solids: 0mm - 90mm
Concentration: Max. 70%
Max. pressure: Max. 4.5mpa
Materials: Hyperchrome alloy, Rubber, Polyurethane, Ceramic, Stainless steel, etc.

• Large capacity, high head, multi-stages in series, high-efficiency slurry pump design.
• Advanced CAM modern design, optimal hydraulic performance, high efficiency, and lower abrasion rate.
• Wide passage, non-clogging, and good performance of NPSH.

• Wetted parts have good abrasion and corrosion resistance performance.
• Scientific lubricating and cooling systems ensure that the bearing operates under low temperatures.
• The expeller seal combined with packing seal and mechanical seal has been adopted to guarantee the slurry from leakage.

• The pump can be used for seawater ash-removing to prevent the corrosion of seawater, salt, mist, and electrochemical corrosion.
• The pump can be operated in series with multi-stage within permissible pressure. The permissible maximum working pressure is 4.5MPa.

Mining, Mineral processing, Coal prep, Ash and slag, Tunnel, Mill discharge, Tailings, Fine tailings, Ash handing, Cyclone feeds, Lime grinding, Coarse sand, FGD, Phosphoric acid, Dredging, Construction, Alumina Industry, Mineral concentrate, Potash Fertilizer Plant, etc.

THR Rubber Slurry Pumps are similar to TH metal-lined slurry pumps in structure. The main difference between TH and THR is the material of the wetted parts, natural rubber, chloroprene rubber, or other wear-resistant rubbers. THR Rubber-lined slurry pumps are more suitable for delivering strong corrosive or abrasive slurries of small particle sizes without sharp edges.

Size (discharge): 1 to 22
Capacity: 3.6m3/h - 5400m3/h
Head: 6m - 125m
Handing solids: 0mm - 130mm
Concentration: 0%-70%
Materials: High chrome alloy, Rubber, Polyurethane, Ceramic, Stainless steel, etc.

• Horizontal, Cantilevered, Centrifugal, Single stage, Rubber lined slurry pump design.
• Casing: Casing cast or ductile iron halves with external reinforcing ribs contain the wear liners and provide high operating pressure capabilities.
• Bearing assembly: A large diameter shaft with a short overhang minimizes deflection and contributes to long bearing life. Only four through bolts are required to hold the cartridge-type housing in the frame.

• Pump frame: A rigid, one-piece casting cradles the “cartridge” shaft and bearing assembly. A minimal number of through bolts hold the pump casing to the frame. An easy means of external impeller adjustment is provided in a convenient position below the bearing housing.

• Impeller: Front and rear shrouds have pump-out vanes. This design reduces recirculation and seal contamination. Elastomer impellers are made from rubber-coated high-tensile steel, and Cast-in impeller threads require no impeller insert or nuts.

• Liners: Rubber elastomer liners are interchangeable with hard metal. The elastomer liners are bolted, not bonded, to the outer casing. Elastomer seal rings back all liner joints.
• Shaft seal: Packing seal, Centrifugal seal, Mechanical seal.

• Driving type: Flexible coupling, V-belt with pulleys, Gearbox, VFD, SCR control, etc.
• Easy to install and maintain in on-site applications.

• The discharge branch can be oriented to any eight positions at an interval of 45 degrees.

A Packing Seal is a general shaft seal. It applies to various pumping conditions, PTFE and Graphite materials of Packing can be used in high corrosive slurries or high-temperature conditions. Using ceramic shaft sleeve, for high abrasion conditions, the ceramic shaft sleeve is available.

The Expeller Seal is an impeller force of reversed centrifugal force that prevents slurry leakage. An expeller seal can be used on the single-stage pump when the positive pressure of the pump inlet is no more than 10% of the pump outlet pressure or on the first-stage pump in the pump series.

Mechanical seal is an advanced sealing technique without sealing leakage, integrating construction, convenient installation, replacement, and various constructions suitable for all kinds of conditions.

Mining, Mineral processing, Coal prep, Cyclone feeds, Silica sands, Chemical slurries, Tailings, Mill grinding, Ash handing, Paper and Pulp, Waste sludge, Coarse sand, Lime mud, Phosphoric acid, Dredging, Construction, Alumina Industry, Power Plant, Potash Fertilizer Plant, etc.

TLR Rubber Light Duty Slurry Pumps are rubber lined high-efficiency centrifugal slurry pumps, Designed for handling strong corrosive, light abrasive, low concentration slurries and small particle size without sharp edges. It is widely used in mining, mineral processing, paper-making, coal washing, power plants, metallurgy, petrochemicals, building materials, dredging, and other industrial fields.

Size: 50mm - 650mm
Capacity: 9m3/h - 9108m3/h
Head: 3m - 51m
Pressure: Max. 250 PSI
Materials: Rubber, Polyurethane, etc.

• Light duty, high efficiency, speed, horizontal, centrifugal, rubber-lined slurry pump design.
• Cylindrical structure of bearing assembly.
• Ductile iron and fully lined casing provide durability, strength, and long service life.

• Large diameter, slow turning, open or closed high-efficiency impellers (up to 90%+) result in maximum wear life and lower operating costs.
• Anti-corrosion and abrasion rubber-lined wetted parts.

• Shaft seal can be packing, expeller, or mechanical.
• The discharge direction can be oriented to any eight positions at an interval of 45 degrees.

A Packing Seal is a general shaft seal. It applies to various pumping conditions, PTFE and Graphite materials of Packing can be used in high corrosive slurries or high-temperature conditions. Using ceramic shaft sleeve, for high abrasion conditions, the ceramic shaft sleeve is available.

The Expeller Seal is an impeller force of reversed centrifugal force that prevents slurry leakage. An expeller seal can be used on the single-stage pump when the positive pressure of the pump inlet is no more than 10% of the pump outlet pressure or on the first-stage pump in the pump series.

Mechanical Seal is an advanced sealing technique without sealing leakage. The advantages are integrating construction, convenient installation, and replacement. The design of the mechanical seal and seal box is suitable for liquid flow conditions, so it has high abrasion and vibration resistance. Mechanical seals can be used in various severe conditions.

Mining, Mineral processing, Coal Washery, Cyclone feeds, Iron Ore Dressing Plant, Chemical slurries, Tailings Copper Concentration Plant, Gold Mine Concentration, Paper and Pulp, Molybdenum Concentration, Sand Excavation, Lime mud, Phosphoric acid, Dredging, Construction, Alumina Industry, Power Plant, Potash Fertilizer Plant, etc.

TMC Mill Circuit Duty Slurry Pumps are interchangeable with MC/MCR mill circuit pumps easily manage large-size particles in dense abrasive slurries and are specifically designed for the most severe slurry applications such as ball and SAG mill cyclone feed plus water-flush crushing in mineral processing plants. They are also suitable for slurry transfer pumps on arduous applications such as gravel dredging or coarse coal cyclone feed.

MC Mill Circuit Pump hydraulics are based on more than 25 years of fundamental and applied research backed by wear performance field trials. Unique design and wear evaluation software ensures high efficiency and optimum life.

The TMC range mill circuit pump is engineered to enable different material combinations:

• T-MCR pump – elastomer liners inside the ductile iron outer casing with metal impeller, metal or elastomer throat bush, and frame plate liner insert.
• T-MCU pump – all metal unlined hard white iron casing with metal impeller, throat bush, and frame plate liner insert.
• T-MCM pump – hard white iron metal liners inside the ductile iron outer casing with metal impeller, throat bush, and frame plate liner insert.

Size: 5 - 30
Capacity: Max. 10,225m3/h
Head: Max. 55m
Pressure: Max. 130 PSI
Materials: Rubber, High chrome etc.

• Large diameter, low speed, high-efficiency impellers.
• Latest wear-resistant materials.
• Interchangeable elastomer or metal liners, or unlined metal.
• Simple full-face side liner adjustment.

• Self-centering stuffing box design.
• Fast one-piece wet-end changeout on larger sizes.
• Reverse rotation is also available to minimize wear in special sump orientations.

Mill Circuit, Mineral processing, Coarse coal, Chemical and Fertilization, Power Generation, Mining, Paper mill wastes and liquors, Precipitated CaCO3, Plaster, Bottom fly ash, Lime grinding, Pulp and paper, Cyclone feed, Wastewater treatment, Dirty water, Waste sludge, Ball mill discharge, Rod mill discharge, SAG mill discharge, Fine tailings,

Flotation, Heavy media process, Minerals concentrate, Mineral sands, Coal washing plant, Coarse sand, Coarse tailings, Dredging, FGD, Wet crushers applications, Wet scrubber systems, Process chemical, Iron and Steel, Ni acid slurry, Fracking slurries, Clay and sand slurries, Kaolin clay, Carbon slurry, Lime mud, Oil sands, Phosphoric acid.

THR Rubber-Lined Slurry pumps are interchangeable with the world's standard Warman AHR rubber-lined slurry pumps for heavy duties. The THR rubber slurry pump is a cantilevered, horizontal, centrifugal, natural rubber-lined slurry pump for handling strong corrosive or abrasive slurries of small particle size without sharp edges in the mining, mineral dressing, metallurgy, coal, power, building material, and other industrial departments, etc.

Size: 1 - 22
Capacity: 3.6m3/h - 5400m3/h
Head: 6m - 125m
Handing solids: 0mm - 130mm
Concentration: 0%-70%
Materials: Rubber, Polyurethane, High chrome, Ceramic, Stainless steel, etc.

• Frame Plate and Cover Plate: The outer casing is made of grey cast iron or ductile cast iron according to the working pressure, with a split structure and blots connected, which ensures security and easy replacement of the wet parts.
• Anti-corrosive rubber-wetted parts are interchangeable with metal and polyurethane-wetted parts.

• The bearing assembly uses a cylindrical structure, easily adjusting the space between the impeller and front liner.
• Bearing adopts grease lubrication.
• The discharge branch can be oriented to any eight positions at an interval of 45 degrees.

• It can be installed in multistage series to meet the delivery for long distances.
• Various drive types: DC driven (direct connection), V-belt and pulleys driven, gearbox, hydraulic couplings, VFD, SCR control, etc.
• The shaft seal uses the packing seal, expeller seal, and mechanical seal.
• High efficiency, long lifetime, and easy maintenance.

Mining, Mineral processing, Coal prep, Cyclone feeds, Lime slurries, Chemical slurries, Tailings, Mill grinding, Ash handing, Paper and Pulp, Silica sands, Coarse sands, Limestone, Phosphoric acid, Dredging, Kaolin, Alumina Industry, Power Plant, Potash Fertilizer Plant, etc.

THY Hydraulic Submersible Slurry Pump is designed for handling rocks, slurry, gravel, sand, stone, minerals, bentonite, and others, with the shortest delivery times. It delivers massive solids production at very low operational costs. The THY hydraulic slurry pump can install cutters or agitators on various excavators to work like submersible dredging pumps. It can be also used in various hydraulic stations.

Size: 100mm - 350mm
Capacity: 60m3/h - 1200m3/h
Head: 5m - 43m
Max. Particles: 120mm
Temperature Range: ≤80°C
Materials: High chrome alloy, Hyperchrome, SS304, SS316L, CD4MCu, 2205, etc.

• THY hydraulic slurry pumps have standard high-efficiency agitators to lift settled solids.
• High abrasion resistance with high chrome wear parts.
• Low rotation speed to reduce wear effect.
• Able to handle up to 70% solids by weight.

• All electric motors are class H with a high service factor
• The cutting head is designed to reduce the cost of worn parts thanks to interchangeable hard teeth. A robust hydraulic motor guarantees strong torque and long life.
• Cutters are designed to work up to 250m working depth, handled by a steel cable.

Motor

Impeller

Casing

Shaft and Bearing Assembly

Shaft Sleeve

Seals Package

Upper and Lower Wear Plates

Strainer

Agitator

Hydraulic Cutterhead for submersible slurry pumps is a custom-engineered system. The dredging specialists carefully analyze customer requirements and operating conditions to arrive at the design criteria - cutter profile, size, beta, arm quantity and shape, tooth size, and tooth orientation. What is more, the combination of the Cutterhead with the agitator avoids any clogging problem at the pump suction.

Cutterhead can be used with every Hydraulic slurry Pump and can increase efficiency, particularly in the presence of hard and compact material.

Hydraulic cutters for submersible slurry pumps are designed to let the pump work also in the presence of very compact material. Cutters can increase solid production by increasing the concentration of the slurries and permit to complete the dredging activities even in the most difficult situations.

• The cutting head is designed to reduce the cost of worn parts thanks to the interchangeable hard teeth.
• A robust hydraulic motor guarantees strong torque and long life.
• Cutters are designed to work up to 250m working depth, handled by steel cable.

Dredging, Slurries, Sands, Gravel, Stone, Rocks, Minerals, Excavating, Sludge, Bentonite, Tailing slurries, Bucket dredger, Coal slime, Solid materials, Draining, Slush, Slag, Silt, etc.

Hydraulic Submersible Dredge Pumps are suitable for 120, 150, 220, 240, 300, 330, 360, and other small, medium, and large series of excavators. Besides, they are specialized for those circumstances that are difficult to dig, such as much more water and watery sludge and sand. Remove the bucket and connect it to the hydraulic mortar pump, a concentration of extraction with high efficiency and density could be achieved.

The work efficiency improves greatly with the matching hydraulic slurry pump and long-distance transportation is also realized. In addition, it could be equipped with a hydraulic station and applied to the harsh environment. Hence, several difficult conditions could be dealt with such as excavators digging ineffectively, long-distance transportation of mud and mortar, lack of electricity supply, and frequent switching conditions. In conclusion, it can supply various conditions.

Size: 80mm - 400mm
Capacity: 50m3/h - 1500m3/h
Head: 10m - 50m
Max. Particles: 60mm
Temperature Range: ≤80°C
Materials: High chrome alloy, Hyperchrome, SS304, SS316L, CD4MCu, 2205, etc.

• The bottom of the pump has a mixing device, and it also could be equipped with a bilateral or multilateral agitator additionally to prevent large pieces of fixed material from clogging the pump and fully making the solid and liquid mixed, thus it is more convenient to handle.
• This slurry pump can handle solid material with maximum particles up to 50mm, and the extraction concentration of solid liquid could be up to 70% or more.

• The device is mainly installed in the excavator, and powered by the excavator hydraulic station so that a free transition could be provided. Sides, with the power source of the diesel engine, the problem of the inconvenience of electricity during construction in remote areas can be solved.
• Wetted parts: the pump casing, impeller, guard, and mixing impeller are all made of high chrome alloy. Other materials can be customized.

• With the unique seal device, it could avoid frequent changing machine seals and improve work efficiency.

Note: Due to different working conditions, the pump output may also change with the operation, transportation distance, and other factors.

• Dredging and desalting in the river, lake, and port.
• Extracting sand, gravel, harbor reclamation projects, etc.
• Draining liquid with solid materials, such as iron, tailings slag, etc.
• Extracting slag, forging slag, sludge, and other industrial waste.
• Pump sand and gold mining etc.

TSQ Submersible Sand Pump is hydraulic machinery, the motor and the pump of which are coaxially working submerged in medium. The wetted parts of the pump are made of high chromium wearable alloy, so the pump has good wear resistance and a large flowing passage. It is applicable for conveying media such as sludge, ore slurry, coal slurry, and sandstones containing big solid particles. The product is designed and manufactured by domestic and overseas advanced technologies.

Besides the main impeller, the bottom of the pump is additionally provided with a set of agitation impellers that can spray the deposited sludge into turbulent flow. The unique mechanical seal device can effectively balance the pressure inside and outside the oil chamber, to protect the reliability of the mechanical seal to the maximum extent.

The motor adopts various protective measures such as overheat protection, and water inlet detecting protection, and can operate safely for a long term in harsh working conditions.

Size: 50mm - 400mm
Capacity: 24m3/h - 2400m3/h
Head: 13.5m - 59m
Power: 7.5m - 315m
Max. Particle: 60mm
Materials: High chrome alloy, Cast iron, SS304, SS316L, etc.

• The whole machine is a dry submersible pump and the motor adopts oil chamber seal mode and is provided with a mechanical seal inside, so high-pressure water and impurities are effectively prevented from entering the inner cavity of the motor.
• Besides the main impeller, there is the agitation impeller which can agitate the sludge deposited on the water bottom into turbulent flow and pump the sludge out.

• The overflowing parts such as the impeller and the agitation impeller are made from high-hardness high chromium cast steel, have wear resistance, corrosion resistance, and strong drainage capacity, and allow big solid particles to pass.
• Impeller, agitation impeller, and other major wet parts using high wear-resistant material manufacturing, wear-resistant, corrosion-resistant, non-clogging blowdown ability, can be through larger solid particles effectively.

• No limitations by the suction head, high-efficiency suction slag, and more thorough cleaning.
• Not equipped with auxiliary mixing or spraying devices, operation is more convenient.

• The agitation impeller directly contacts the deposition surface, uncontrol concentration through dive depth, therefore concentration control is more comfortable.
• The motor is submerged in water and is not limited by suction stroke. It has a high sludge suction rate and thorough desilting.

• Pumping tailing slurry for industrial and mining organizations.
• Sucking silt in the sedimentation basin.
• Pumping silty sand or fine sand for seashore or port.
• Pumping powdery iron ore for foreign countries, etc.
• Deliver solid particles of mud, larger pulp, coal slurry, sandstone, and other media.
• Sucking from all kinds of fly ash power plants, coal slime.

TJQ Submersible Slurry Pump is a kind of hydraulic machinery, the motor and the pump of which are coaxially submerged in medium to work. The wetted parts of the pump are made from high alloy wear-resistant material, so the pump has good wear resistance and a large flowing passage. It is applicable for conveying media such as sand, sludge, ore slurry, coal slurry, and sandstones containing big solid particles.

Size: 50mm - 400mm
Capacity: 10m3/h - 2000m3/h
Head: 8m - 80m
Max. Particles: 60mm
Temperature Range: ≤80°C
Materials: High chrome alloy, Cast iron, SS304, SS316L, etc.

• Vertical, Centrifugal, Submersible pump design.
• Besides the main impeller, there is the agitation impeller which can agitate the sludge deposited on the water bottom into turbulent flow and pump the sludge out.
• The wetted parts such as the impeller and the agitation impeller are made from high-hardness high chromium cast steel, have wear resistance, corrosion resistance, and strong drainage capacity, and allow big solid particles to pass.

• The motor is submerged in water, is not limited by suction stroke, and has a high sludge suction rate and thorough desilting.
• The integral device is simplified, needs no auxiliary stirrer device or ejector device, and has simple and convenient operation and low total investment of the unit.

• The agitation impeller directly approaches the depositional surface and controls the concentration through submerged depth. Under the condition of a large medium proportion, an auxiliary device can be arranged to increase the concentration of the medium.

Mining, Slurries, Sands, Silty sand, Dredging, Chemical slurries, Iron ore sands, Sediment, Sewage treatment, Sludge, Desilting, Tailing slurries, Lime mud, Coal slime, Gravels, Construction, Slush, Slag, Silt, etc.
