Aluminum Electrolysis

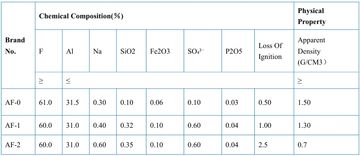

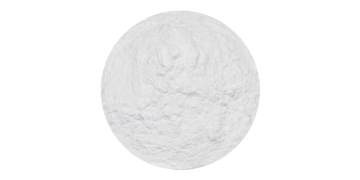

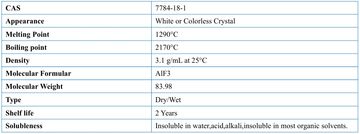

Aluminum fluoride is an inorganic compound with the chemical formula AlF3. It typically appears as a colorless or white crystalline solid. This compound is characterized by its high melting and boiling points, and while it is insoluble in water, it can dissolve in acidic solutions. Chemically, aluminum fluoride is highly corrosive and can react with various metals, non-metals, and other compounds. It also exhibits very high chemical stability.

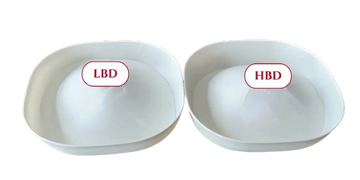

Model No.: HBD/LBD

Storage: It is essential to store the container in a cool, dry, and well-ventilated area, ensuring that it is securely closed at all times.

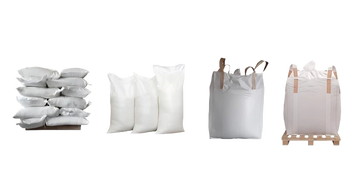

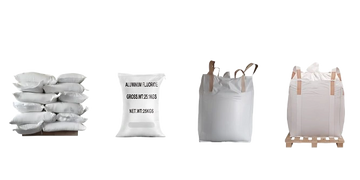

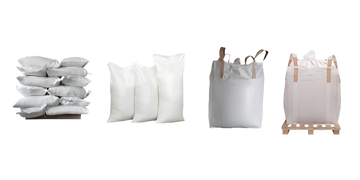

Packaging: 12.5kg, 25kg, 500kg, 1000kg, or according to your requirements.

Delivery Terms: FOB / CIF / FCA / DAP
Delivery Time: 3-10 days

Delivery Options: by sea / by plane / by rail / by trucks

Supply Ability: over 5,000MT per month

• It is used to lower the melting temperature of electrolytes and enhance conductivity in the aluminum electrolysis ind.
• It is used as a flux for non-ferrous metals.
• It can be incorporated into the flux and glaze compositions for ceramic and enamel glazes.
• It acts as an inhibitor of side fermentation in essential oil production.
• It serves as an inhibitor of side fermentation in alcohol production.
• It is used as welding flux in metal welding processes.
• Employed in the manufacturing of optical lenses.

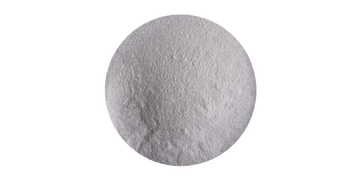

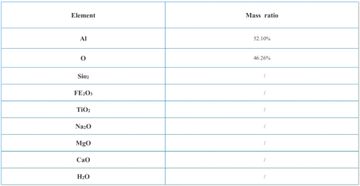

Aluminum oxide, with the chemical formula Al2O3, is an inorganic compound known for its high hardness. Its melting point is 2054°C and its boiling point is 2980°C. This ionic crystal can be ionized at high temperatures and is commonly used to produce refractory materials.

Industrial alumina comes from bauxite (Al2O3·3H2O) and hard diaspore. When high purity is needed, chemical methods are used to make Al2O3. There are more than ten types of Al2O3 crystals, but three main types are α-Al2O3, β-Al2O3, and γ-Al2O3. Each type has different structures and properties. At temperatures above 1300℃, most Al2O3 changes into α-Al2O3.

Storage: Aluminum oxide should be stored in a cool, dry, and well-ventilated area in a tightly closed container.

Chemical formula: Al₂O₃

CAS: 1344-28-1

EINECS: 215-691-6

Melting point: 2054ºC

Boiling point: 2980℃ [6]

Density: 3.5g/cm³

Molecular weight: 101.96

Risk description: Xi, F

Appearance: White amorphous powder

Application: Used as an analytical reagent, adsorbent, etc.

Hazard symbol: R36/37/38, R67, R36/38, R11, R36

Water soluble: Insoluble in water, soluble in strong alkali and acid

Control: This product is not restricted

• The main components of ruby and sapphire are aluminum oxide, which displays different colors due to various impurities. Sapphire, for example, contains iron oxide and titanium oxide, giving it a blue hue.
• Aluminum oxide is the primary component found in aluminum ore, known as bauxite. In industrial processes, bauxite is refined into aluminum oxide through the Bayer process and then converted into aluminum metal using the Hall-Héroult process.

• When aluminum reacts with oxygen in the air, it forms a dense aluminum oxide film that covers the exposed surface of the metal.
• Aluminum is an excellent conductor of electricity and heat. The crystalline structure of aluminum oxide makes it suitable for use as a grinding material and cutting tool due to its high hardness.
• Aluminum oxide powder is frequently utilized as a medium for chromatographic analysis.

• Aluminum oxide is also employed in a type of reinforced glass known as transparent alumina, which is made from an alloy synthesized from aluminum and rare earth elements.

Packaging: 25kg, 50kg, 1000kg, or according to your requirements.

Delivery Terms: FOB / CIF / FCA / DAP
Delivery Time: 3-10 days

Delivery Options: by sea / by plane / by rail / by trucks

Supply Ability: over 5,000MT per month

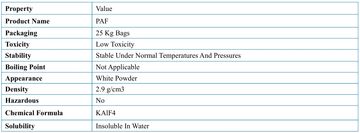

It is a compound that appears as a crystalline substance with unique properties. It is widely used in industrial processes, particularly in the metallurgical industry. As a flux, it aids in the melting and processing of metals by lowering melting points and improving the fluidity of molten substances. Its good thermal stability and chemical resistance further enhance its effectiveness. Its specific composition gives it distinct characteristics that are valuable in various applications.

Model No.: PAF

Storage: It is essential to store the container tightly closed in a dry, cool, and well-ventilated area to prevent moisture accumulation. Furthermore, it is imperative not to store or transport the container alongside food items or acids.

Packaging: 25kg, 50kg, 1000kg, or according to your requirements.

Delivery Terms: FOB / CIF / FCA / DAP
Delivery Time: 3-10 days

Delivery Options: by sea / by plane / by rail / by trucks

Supply Ability: over 5,000MT per month

• Used as an additive in grinding products, it effectively improves the wear resistance, cutting force, and cutting efficiency of resin grinding wheels, cutting blades, and sandpaper.
• Serves as a brazing agent for aluminum, aluminum alloys, and stainless steel.
• Acts as a degassing agent and flux during the manufacturing process of aluminum alloys.
• Functions as an active filler and emulsifier in the glass and ceramics industry.

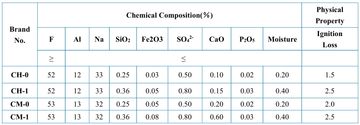

The compound with the chemical formula Na3AlF6 appears as a white or off-white powder or crystalline solid. It is known for its unique properties, including specific physical characteristics such as a defined melting point and density. Chemically, this material is stable under normal conditions but may undergo certain reactions under specific circumstances.

Molecular proportions of 2.80-3.00 represent high molecular proportion cryolite (CH), while proportions of 1.00-2.80 correspond to low molecular proportion cryolite (CM). The product's molecular ratio and grain size fineness can be customized according to your requirements.

Storage: Keep it in a cool, dry place away from direct sunlight and heat, in a tightly sealed container to prevent moisture exposure.

Molecular Weight: 209.94

Color: White, Off-white, Yellow

True Density: 2.95~3.05g/cm3

Product Name: Synthetic Cryolite

Molecular Formula: Na3AlF6

Melting Point: 1025°C

The Hardness: 2~3

Cas No.: 15096-52-3, 1344-75-8, 13775-53-6

Packaging: 25kg, 50kg, 1000kg, or according to your requirements.

Delivery Terms: FOB / CIF / FCA / DAP
Delivery Time: 3-10 days

Delivery Options: by sea / by plane / by rail / by trucks

Supply Ability: over 5,000MT per month

• Used as a flux in aluminum electrolysis.
• Serves as a wear-resistant additive in grinding products.
• Functions as a flux for ferroalloys and the production of boiling steel.
• Utilized as a flux for non-ferrous metals.
• Acts as a deoxidizer in casting processes.
• Employed as an anti-reflective coating for glass.
• Functions as an emulsifier for enamel.
• Used for opalizing glass.
• Serves as a flux for welding consumables.
• Acts as a filler in the ceramic industry.

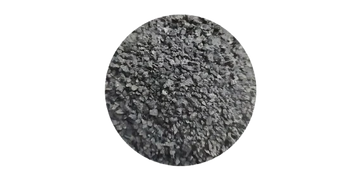

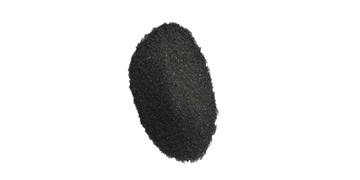

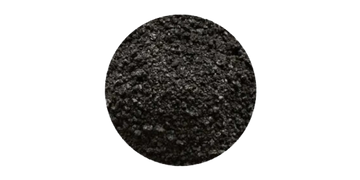

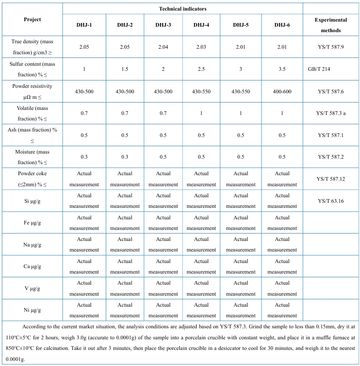

Calcined petroleum coke (CPC) is produced by the coker unit in a crude oil refinery. This type of coke is used to create anodes for the aluminum, steel, and titanium smelting industries. Additionally, it serves as a feedstock for the production of synthetic graphite. CPC is derived from petroleum coke, created by removing ash and volatile matter at a high temperature of 1300°C in a calcining furnace.

Storage: CPC should be stored in a dry environment using a fully enclosed storage system.

The calcination process induces significant changes in the structure and elemental composition of various carbonaceous materials, enhancing the density, mechanical strength, and electrical conductivity of the resulting product. Calcined coke is widely utilized in various applications, including prebaked anodes, graphite electrodes, and negative electrode insulation materials.

Packaging: 25kg, 50kg, 1000kg, or according to your requirements.

Delivery Terms: FOB / CIF / FCA / DAP
Delivery Time: 3-10 days

Delivery Options: by sea / by plane / by rail / by trucks

Supply Ability: over 10,000MT per month

• Metallurgy: Ideal for casting in the glass production industry, crafting graphite crucibles, and forming anodes that are crucial for aluminum smelting.
• Steel Foundry: Functions as a carburizing agent, essential for the production of graphite electrodes and refractory materials, which enhance productivity and efficiency.
• Industry Applications: Suitable for the fabrication of brake pads, seal rings, friction plates, heat exchanger components, and improving lubricity.

• Battery Production: Used in the manufacturing of alkaline and lithium-ion battery cathodes, contributing to longer battery life and better performance.
• Other Applications: Appropriate for producing glass sheets, pencil leads, clay bricks, and conductive coatings, ensuring high quality and durability.

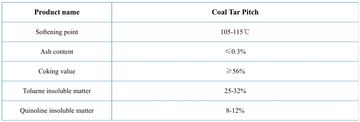

Coal tar pitch is a thick, dark-brown to black, solid, or liquid substance with a strong odor that has many industrial and consumer uses.

Storage: CTP should be stored in tightly closed containers or drums in a well-ventilated area.

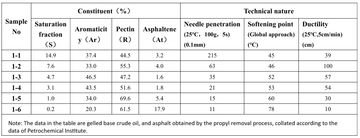

The chemical components and technical properties of asphalt are obtained from the same source process.

Name: Bitumen, Asphalt

CAS: 8052-42-4

EINECS: 232-490-9

Melting point: No fixed melting point

Water solubility: Insoluble in water

Density: 1.15 to 1.25g/cm³

Appearance: Black semi-solid or liquid

Flashpoint: 204.4℃

Hazard description/Health hazard: Moderate toxicity

Source: Coal and petroleum

Conductive properties: Insulator (at room temperature)

In civil engineering, asphalt is a commonly used material known for its waterproof and anti-corrosion properties. It is primarily utilized for waterproofing roofs, as well as for the ground and underground structures. Additionally, asphalt serves to protect wood and steel from corrosion.

In road engineering, asphalt is an essential component for creating pavement structures. It can be mixed with various mineral materials in different proportions, allowing the construction of asphalt pavements with diverse structures. As a result, it is extensively used in the development of highways.

Packaging: 25kg, 50kg, 1000kg, or according to your requirements.

Delivery Terms: FOB / CIF / FCA / DAP
Delivery Time: 3-10 days

Delivery Options: by sea / by plane / by rail / by trucks

Supply Ability: over 10,000MT per month

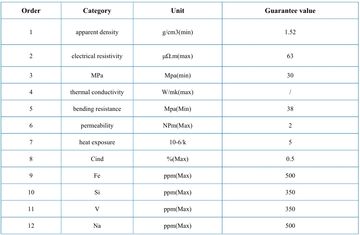

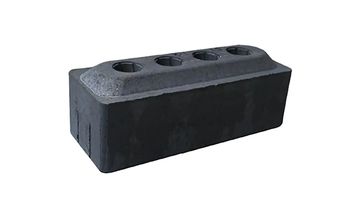

An anode carbon block is a large, rectangular block of carbon that conducts electricity during the aluminum smelting process. Carbon-based anode materials have several advantages, including low cost, biocompatibility, excellent electrical conductivity, and chemical stability.

• Composition: Made from petroleum coke, asphalt, coal tar pitch, and other bonding agents.
• Shape: Has a stable geometric shape after being roasted.
• Function: Used as the anode material in a pre-baked aluminum electrolyzer.
• Process: Attached to rods and suspended in an electrolytic cell, where they are slowly consumed.
• Replacement: Anode carbon block must be replaced frequently because oxygen reacts with the carbon anodes, forming carbon dioxide and gradually burning them away.

Anode carbon blocks are made from a combination of petroleum coke and asphalt coke as aggregates, with coal pitch serving as the binder. These blocks are utilized as anode material in pre-baked aluminum electrolytic cells. After undergoing a roasting process, they acquire a stable geometry, which is why they are often referred to as pre-baked anode carbon blocks. They are also known as carbon anodes for aluminum electrolysis.

• Graphite electrodes: Ordinary power graphite electrodes, Anti-oxidation coated graphite electrodes, High-power graphite electrodes, Ultra-high power graphite electrodes.
• Graphite anodes: Various anode plates for the chemical industry, Various anode rods.
• Graphite heat exchanger: Block hole heat exchanger, Radial heat exchanger, Falling film heat exchanger, Shell and tube heat exchanger.
• Special graphite

• Carbon electrode: Multi-ash electrode, Regenerated electrode, Carbon resistance rod, Carbon anode, Baked electrode blank.
• Carbon blocks

Packaging: bundle, bulk, custom

Delivery Terms: FOB / CIF / FCA / DAP
Delivery Time: 3-10 days

Delivery Options: by sea / by plane / by rail / by trucks

Supply Ability: over 12,000MT per month

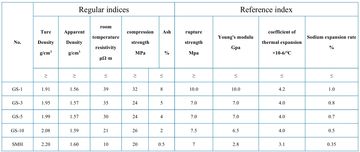

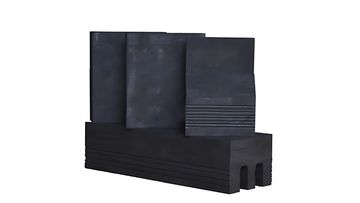

A cathode carbon block is a carbon block used in aluminum electrolysis cells that has both conductive and refractory properties. The cathode carbon block is made from high-quality anthracite, metallurgical coke, and graphite, with coal pitch as the binder. It is produced through preparation, mixing, molding, roasting, and machining.

This block withstands high temperatures, resists corrosion from molten salt, and offers good electrical and thermal conductivity. It has high strength and can handle thermal shocks. Electric furnace blocks are used in ferroalloy furnaces, while blast furnace blocks line blast furnaces, providing high-temperature and corrosion resistance.

Name: Cathode Carbon Block

Also known as: Bottom Carbon Block

Use: Utilized as the cathode in aluminum electrolyzers.

Raw materials: High-quality anthracite, coke, graphite, and others.

Major: Materials Science

Inert cathode carbon blocks are a new type of cathode material known for their excellent conductivity, thermal shock resistance, and mechanical strength. They effectively allow aluminum liquid infiltration and resist chemical corrosion from aluminum and electrolytes. Suitable materials include carbonized titanium carbide (TiC), niobium nitride (NbN), and titanium boride (TiB2).

Titanium boride-coated carbon blocks are created by mixing titanium boride (TiB2), resin glue, and carbon materials with a solvent and a curing agent. This mixture forms a 5mm~10mm thick coating on standard carbon blocks, which is cured at 150°C~300°C for 40hrs~50hrs and then cooled slowly.

These coated blocks provide good electrical conductivity, improve aluminum's interaction with carbon, and reduce sodium and electrolyte penetration and erosion. Alternatively, a carbon paste with TiB2 can be pressed onto the surface of the block and roasted together.

Packaging: bundle, bulk, custom

Delivery Terms: FOB / CIF / FCA / DAP
Delivery Time: 3-10 days

Delivery Options: by sea / by plane / by rail / by trucks

Supply Ability: over 12,000MT per month

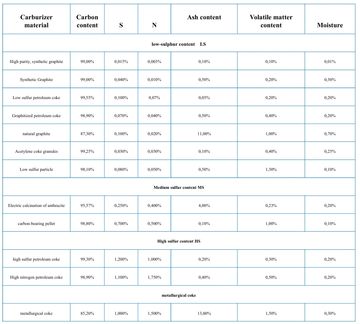

Carbon raiser, also known as carbon additive or recarburiser, is a material added to molten metal to increase its carbon content. When being used in steelmaking or casting, the fixed carbon of carbon raiser can reach more than 95%.

During the smelting process of iron and steel products, factors such as smelting time, holding time, and overheating can lead to an increased loss of carbon elements in the liquid iron. This results in a lower carbon content than the expected theoretical value needed for refining. To compensate for the carbon that is burned off during the smelting process, substances that contain carbon and are added to the mixture are referred to as carburizers.

Packaging: 25kg, 50kg, 1000kg, or according to your requirements.

Delivery Terms: FOB / CIF / FCA / DAP
Delivery Time: 3-10 days

Delivery Options: by sea / by plane / by rail / by trucks

Supply Ability: over 10,000MT per month

For casting processes involving cast iron, cast steel, and other castings, carbon is essential. The use of a carburizer increases the carbon content in liquid iron. In smelting, a common charge includes pig iron, scrap, and return charge. While pig iron has a higher carbon content, its purchase price is generally higher than that of scrap, which leads to an increased use of scrap and a reduced amount of pig iron. The addition of a carburizer can help lower the cost of castings.

Carburizers serve multiple purposes: they can compensate for the carbon loss that occurs during steel smelting, ensuring that the desired carbon content is achieved for specific steel grades. They can also be used for adjustments after the initial processing. As a crucial raw material for molten iron in induction furnaces, the quality and application of the carburizer significantly impact the condition of the molten iron.
